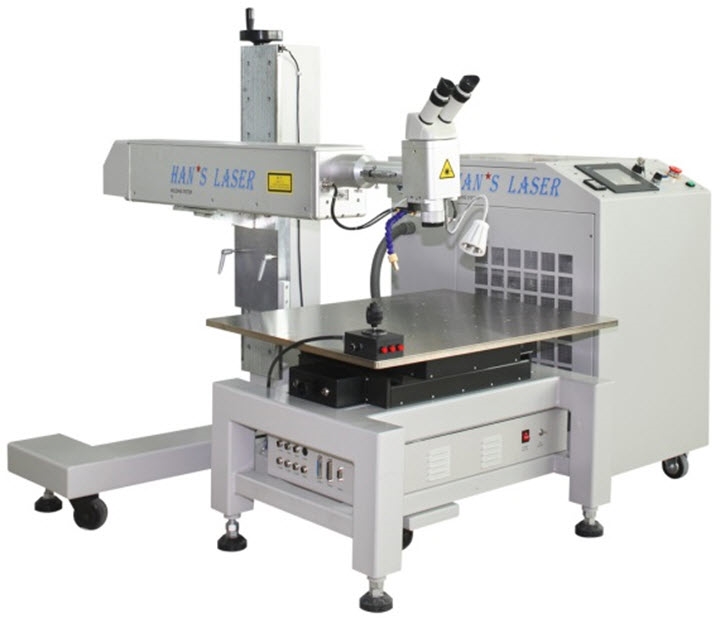

W100B Laser Welding Machine (YAG)

W100B Laser Welding Machine (YAG)




Product Code: W100B
Qty:

Description


Specification

W100B

Laser

Nd: YAG

Laser wavelength

1064nm

Average Laser power

100W

Peak Laser power

*

Max. laser pulse power

50J/10ms

Storability

50

Pulse width

0.1 50 ms

Pulse frequency

120 Hz

Reposition accuracy

±0.02 mm

Feedback control mode

currency feedback control system

Laser pumping source

Pulse Xe lamp

Input voltage

220V, 50/60Hz

Power consumption

5kW

Observation mode

microscope

Dimension

(mm)

Main device

(L×W×H)

800×600×910

Worktable

(L×W×H)

1550×1000×1350

Worktable travel range

(X mm×Y mm×Z mm )

100×100×500

Weight
